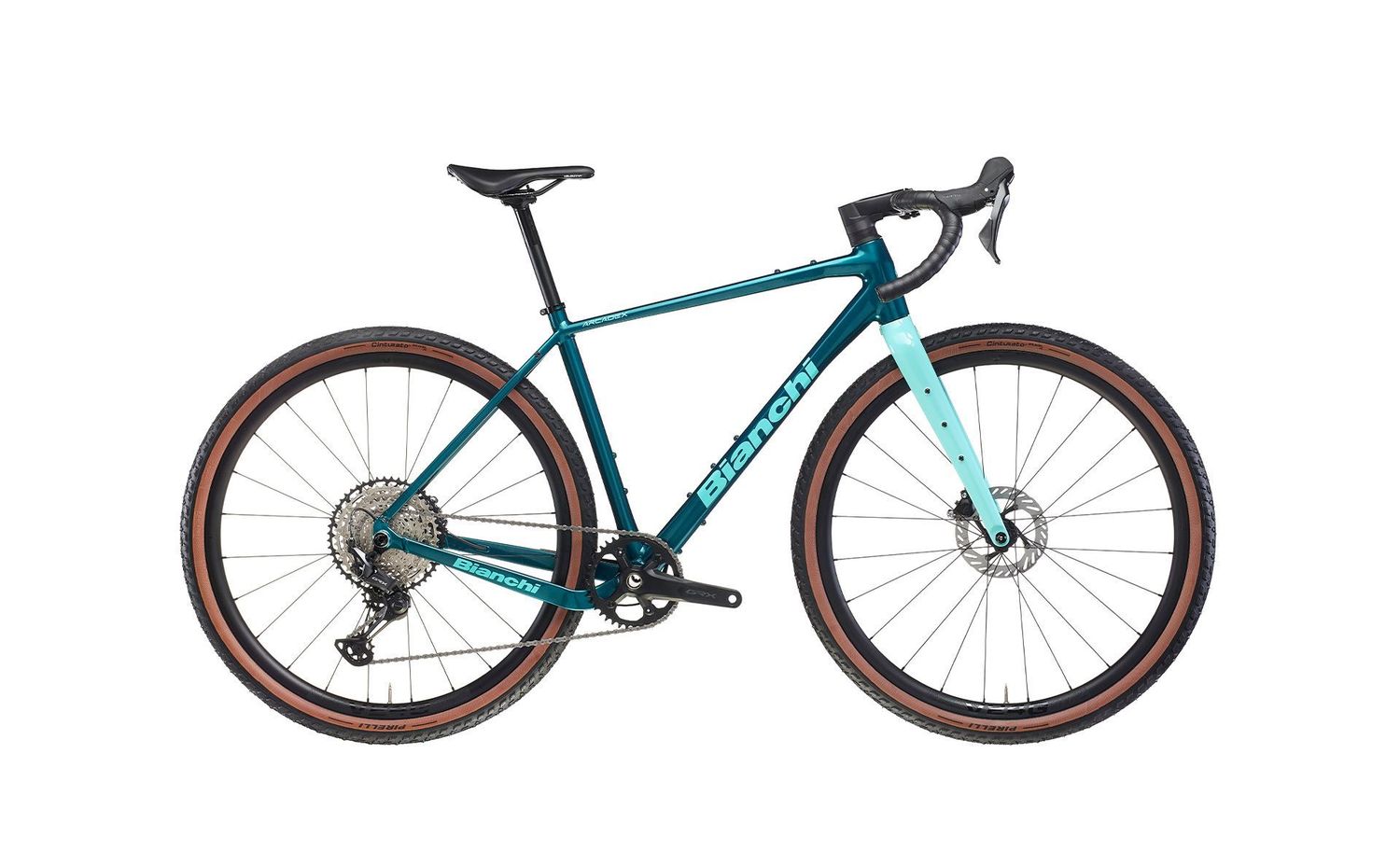

Bianchi Arcadex AL GRX 610

BIANCHI ARCADEX AL GRX 610

• Frameset

  1. Frame

     Bianchi Arcadex AL, aluminium, hydroformed tubes, tire clearance 50 mm, T47 Bottom bracket, rack and fender compatibility sizes XS- SM-MD-LG-XL

  2. Fork

     Bianchi Arcadex, Carbon, flat mount disc brake, thru axle 12x100 mm

  3. Headset

     Acros for internal cable routing

• Drivetrain

  1. Shifters

     Shimano GRX, shifter lever ST-RX610, caliper BR- RX400

  2. Rear Derailleur

     Shimano GRX, RD-RX822, 12sp

  3. Crankset

     Shimano GRX, FC-RX610, 40T Crank length: 165 mm (XS-SM); 170 mm (MD-LG); 172.5 mm (XL)

  4. Bottom Bracket

     Token T47, 24 mm axle, 86.5 mm width

  5. Chain

     Shimano 105, CN-M7100

  6. Cassette

     Shimano SLX, CS-M7100, 10-51T, 10-12-14-16- 18-21-24-28-33-39-45-51T

• Brakes

  1. Brakes

     Shimano BR-RX410 Hydraulic disc brake

  2. Brake Levers

     Included in the shifter

  3. Rotor

     FRONT: Shimano RT-CL700 Center Lock, 160 mm / REAR: Shimano RT-CL700 Center Lock, 160 mm

• Wheels

  1. Wheels

     Velomann V22G, Rim: Aluminium, 622x24c, 24h

  2. Tyre

     Pirelli Cinturato Tanwall, 700x45

• Cockpit

  1. Stem

     Velomann AL6061, rise -7° Size: 70 mm (XS); 80 mm (SM); 90 mm (MD); 100 mm (LG); 110 mm (XL)

  2. Handlebar

     Velomann Gravel, Aluminium, diameter 31.8 mm, reach 70 mm, drop 130 mm, flare 16 deg Size: 400 mm (XS-SM); 420 mm (MD-LG); 440 mm (XL)

  3. Grips / Extensions

     Bianchi Hexagon tape, 2.5 mm thickness, black

• Saddle

  1. Seatpost Clamp

     Bianchi Aluminium, diameter 31.8 mm

  2. Seatpost

     Velomann Aluminium, 27,2 mm, Seatback 0 mm length: 300 mm (XS); 350 mm (SM-LG); 400 mm (XL)

  3. Saddle

     Selle Royal SRX Open
