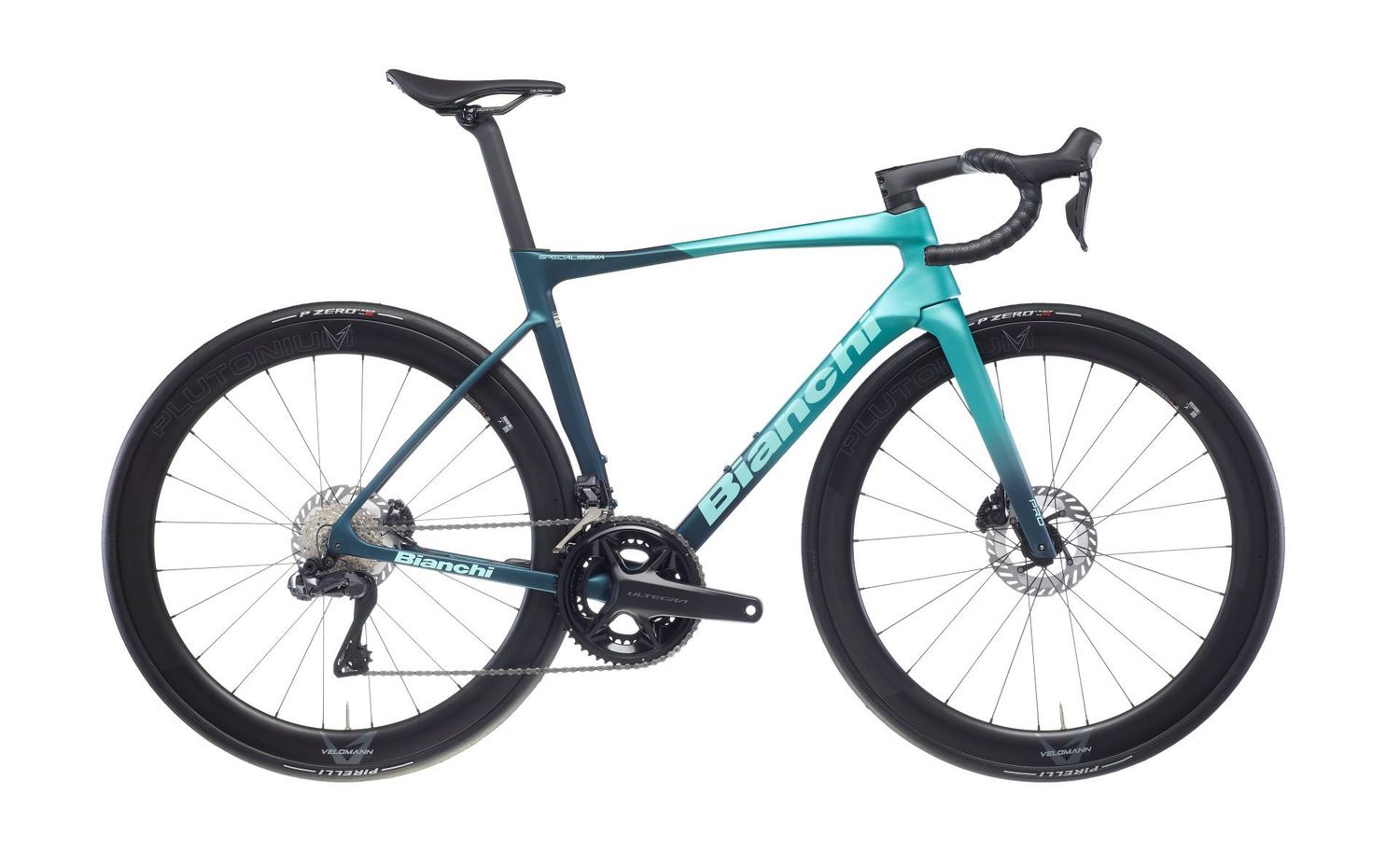

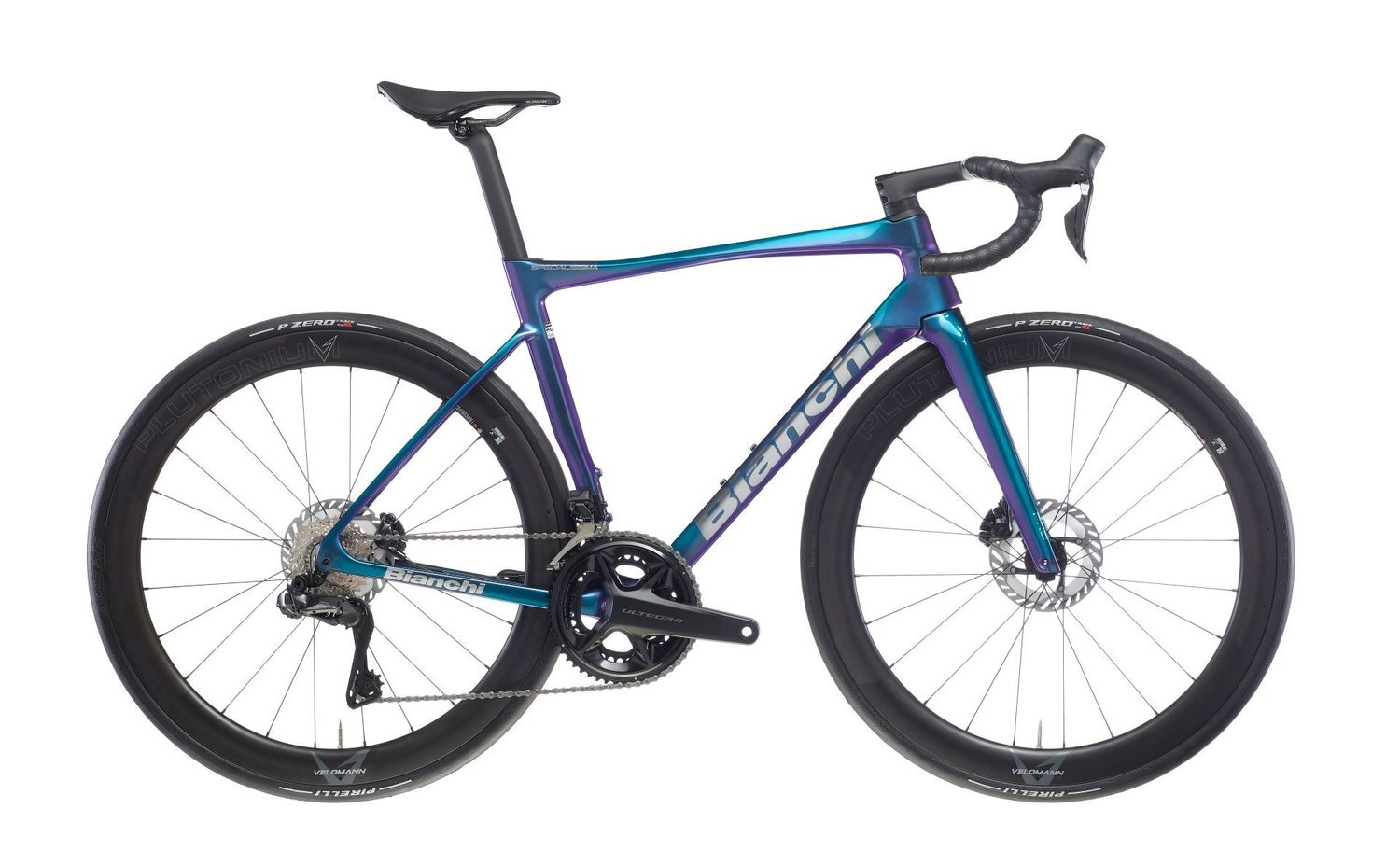

Bianchi Specialissima Pro-Frameset

Tech specs

• Frameset

  1. Frame

     Specialissima PRO carbon HM with Bianchi CV, only electronic groupsets, fully internal cable routing, headset Acros ICR, direct mount brakes, BB-PressFit 86,5x41 sizes 47-50-53-55-57-59cm

  2. Fork

     Specialissima PRO full Carbon HM with CV, aero, integrated head, disc, 1.5" head, 12x100mm thru axle

  3. Headset

     Acros IS52 ICR

• Cockpit
  (* Frame price does not include cockpit )

  1. Stem

     Reparto Corse integrated handlebar, material Carbon, for Acros ICR system drop 125mm, reach 80mm, Ext: 90/380 (47-50cm); 100/400 (53cm); 110/400 (55-57cm); 120/420 (59cm)

  2. Handlebar

     included in the stem

• Saddle

  1. Seatpost

     Specialissima Full Carbon Aero special dimension seatpost, 20mm offset, length: 280mm-47cm, 300mm-50~53cm, 350mm-55~59cm
• Based on component availability, Bianchi reserves the right to make changes on specifications without notice.

• Size Frame & Geometry



  SIZE	A	B1	C	D	E	F	G	G1	H	I	X	Y	WB
  470	420	514	410	58	100	579	74,5°	70,5°	43	368	379	486	982
  500	450	524	410	58	105	581	74,5°	71,5°	43	368	387	494	983
  530	480	535	410	68	120	582	74°	72°	43	368	386	520	984
  550	500	550	410	68	135	588	73,5°	72,5°	43	368	391	536	988
  570	520	560	412	68	150	593	73,5°	73°	43	368	397	552	996
  590	540	575	412	68	170	603	73°	73°	43	368	400	571	1005
