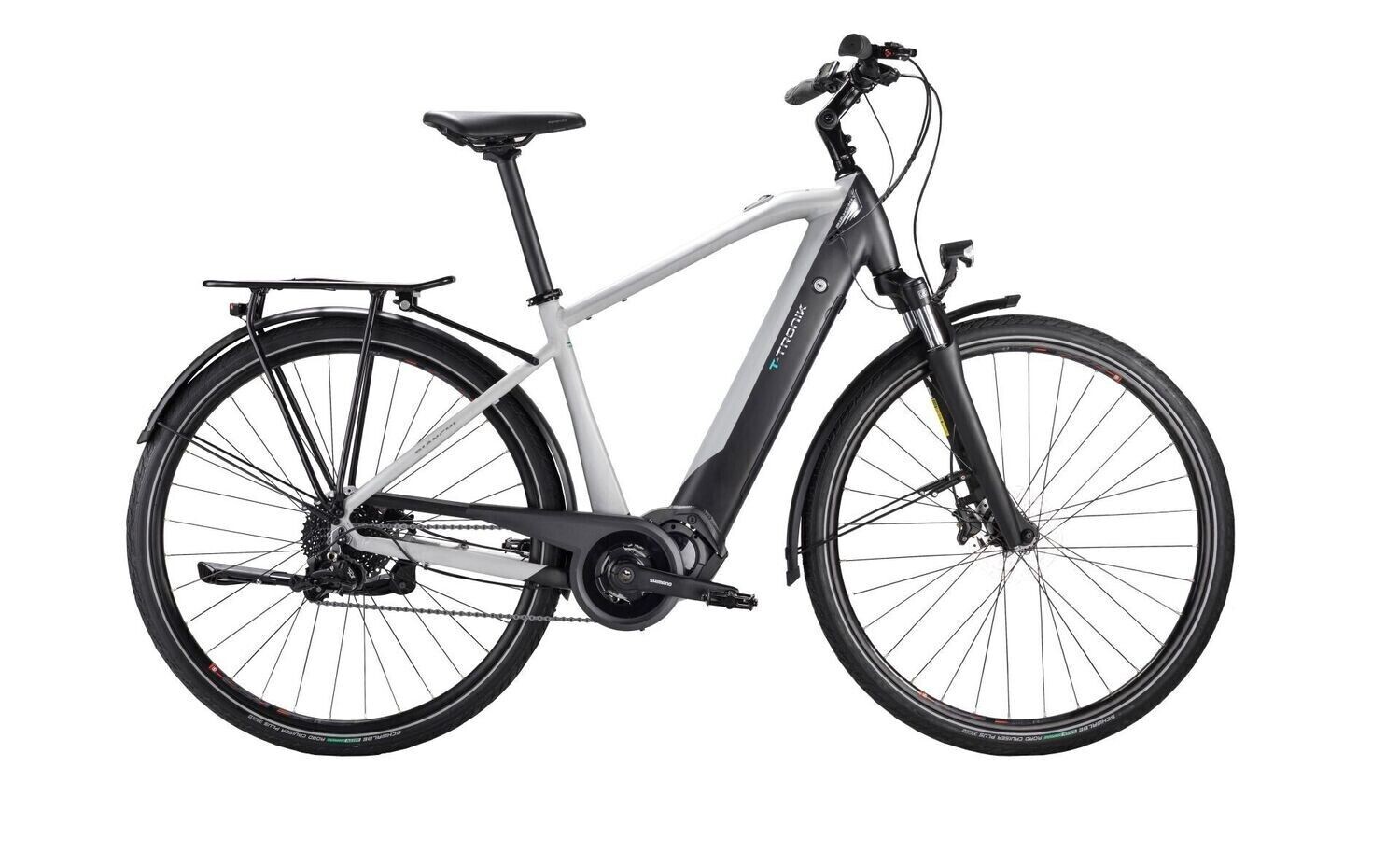

Bianchi T-Tronik T-Type

Sometimes happiness is just a matter of simplicity.

Bianchi aims to make people’s lives easier – in the city and beyond – with the new T-Tronik e-bike range. Simplicity, utility, and elegance are the key concepts that inspired the new models of Bianchi’s e-Urban and e-Tourer collection: T-Tronik C-Type and T-Tronik T-Type.

Italian style and Bianchi technology are combined in the new T-Tronik, whose versatility aims to change daily routine for the better.

DESIGNED FOR EVERYDAY LIFE

The Bianchi T-Tronik’s frame has been designed to guarantee a comfortable position in every situation. The handlebars can be adjusted from 90° to 140° to easily find the perfect riding position, while the step-through geometry makes it easy to mount and dismount the bike, no matter what clothing the rider is wearing. The front fork ensures a smooth ride in every situation.

The electric soul of the new Bianchi range features Shimano’s 250W E6100 motor with 60Nm torque, and an integrated Phylion 417Wh battery, which guarantees a range of up to 95 km. The access port for charging the battery in the e-Urban and the e-Tourer models has been positioned near the bottom bracket to make charging as easy as possible.

The T-Tronik C-Type and T-Type models take safety into account too, with 100-lumen front lights for 400 metres of front visibility and up to 500 metres of passive rear visibility. In addition, bags weighing up to 25 kg can be carried thanks to the bikes’ rear rack.

T-TRONIK T-TYPE: FUN BEYOND THE CITY

T-Tronik T-Type is a versatile e-bike for touring with a minimalist look and is ready to make every riding adventure easier, even on off-road trails with medium difficulty.

This is possible thanks to the bike’s specific frame geometry. It is also available in a step-through version, which is combined with three levels of electric assistance from the Shimano motor. The Bianchi T-Tronik T-Type is available in Urban Grey and Green colours.

Highlights

• Shimano E6100 250W motor offers 60Nm of torque across three assistance modes
• 417Wh Phylion integrated battery provides up to 60 miles of range
• Suntour front fork has 63mm of travel
• Radius hydraulic disc brakes with 160mm rotor
• SunRace 1x9-speed drivetrain

Battery Specification

• Maximum assist: 60Nm/25km/h
• Range: 60 miles (depending on rider weight, conditions and assist level)
• Battery power: 417Wh

Technical Specification

• FRAME

  Telaio T-Tronik T-Type 28", geometria forcella sospesa, guscio in alluminio PG 6061 32/37 Max, freno a disco, O.L.D.135mm, batteria D/T, misura: 47/51

• FORK

  Suntour SF15-NEX-E25-DS-700C-63 PostMount disc brake, 1.1/8", travel 63mm, compatible with fender, OLD 100mm, Quick relase type

• HEADSET

  FSA 1.1/8" 44H-N10P

• SHIFTERS

  Sunrace DLE903N, 9sp, w/ optical gear

• REARDERAILLEUR

  Sunrace, 9sp, max 42T

• CRANKSET

  Shimano FC-E6100, 170MM CHAINRING, SM-CRE61, 38T, FOR CHAIN LINE 46.5MM

• BB

  included in the motor

• CHAIN

  KMC E9s EPT

• SPROCKET

  Sunrace, 9sp, 11-36T

• BRAKES

  Radius, BH-M960, 900mm hose length, Direct Mount, w/adapter Radius BH-M960, 1700mm hose length, Direct Mount, w/ J-kit, w/ adapter

• WHEELS

  Velomann 29", 23-622, 32 hole black

• TIRE

  Chaoyang E-Liner City 700x45C, 60tpi

• STEM

  Velomann, 28,6 mm steerer ID Clamp, 31,8 mm barbore

• HANDLEBAR

  Velomann 31.8/680mm, RISE 20MM, SWEEP 15°

• SEATPOST

  Herrmans GRIPset Oxy DD29BR/BL 130mm/130mm black-black,d.22mm

• SADDLE

  Selle Royal, Essenza

• ROTOR

  Radius Rotors RT900, 160mm, center lock

• PEDALS

  VP black aluminium, w/reflector

• MUDGUARDS

  SKS Mudguard profile A60S, internal cable routing on the rear mudguard, secuclip/esc clip, protector on front and rear tail, protector on front mudguard

• KICKSTAND

  Ursus R81 WAVE REAR, 28" - 40mm fixing plate (load 35kg)

• REARCARRIER

  Racktime, RT Eco 2.0, 28", black w/ roundstay 350mm

• FRONTLIGHT

  Herrmans Mr GO

• REARLIGHT

  Axa Juno

• MOTOR

  Shimano E6100 250W, torque 60Nm

• BATTERY

  417Wh Phylion integrated battery
