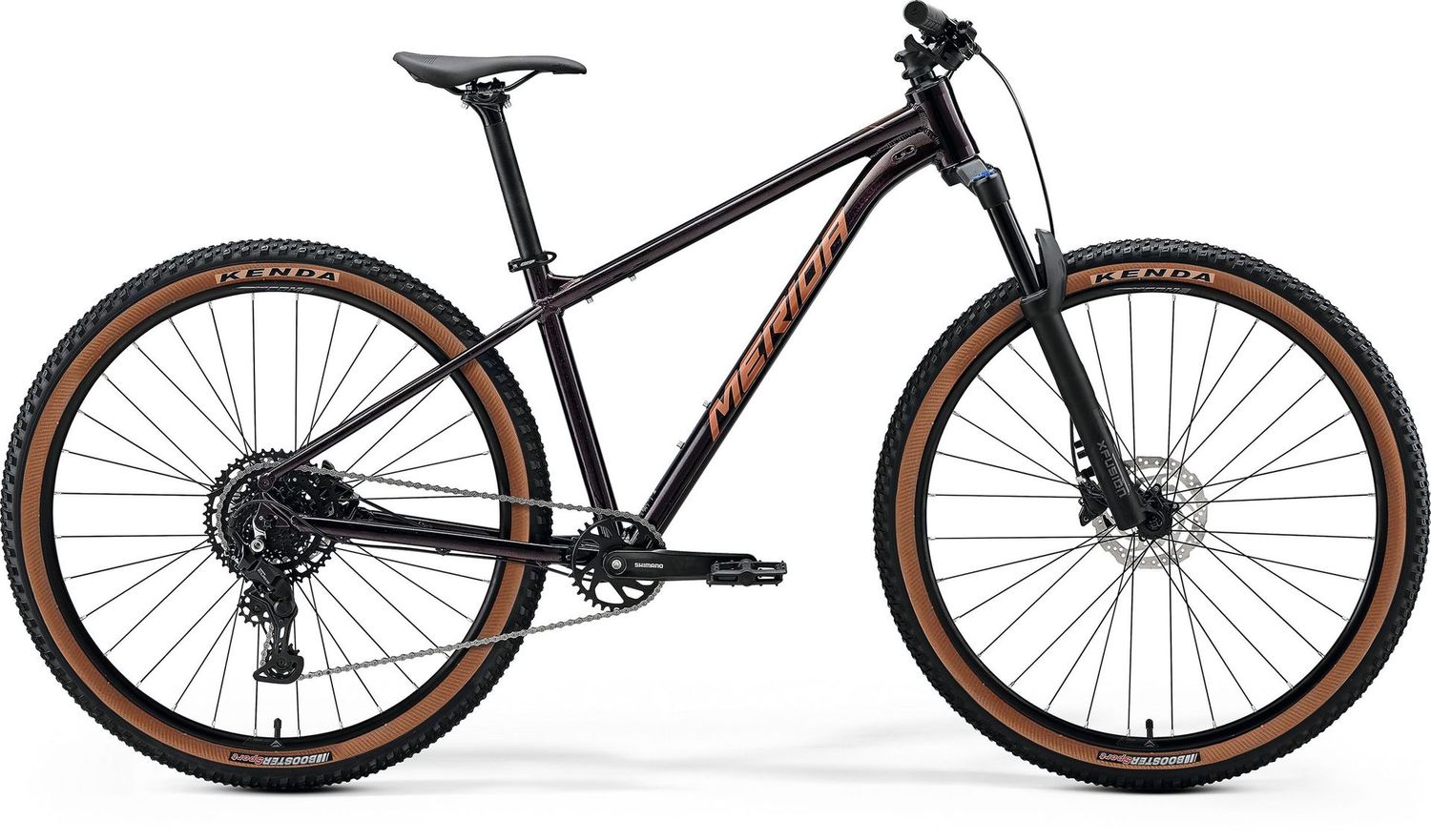

Merida Big Nine 40 Mountain Bike 2026
Highlights
- Updated TFS aluminium frame with clearance for 2.4" tyres
- Trail ready geometry for confident off-road handling
- 120 mm X-Fusion Migo 32 mm stanchion air fork with lockout
- Shimano MT200 hydraulic disc brakes
- Shimano 1x9 drivetrain
- 29" wheels with Shimano hubs and Kenda tyres
- Size tuned Merida finishing kit
The start to the “proper” mountain biking journey: 29er aluminium hardtail with trail ready geometry, 120 mm air fork with lockout, Shimano 1x9 drivetrain and hydraulic disc brakes.
Merida's expertise for over 50 years has been building bombproof aluminium hardtails. The latest generation follows modern mountain bike trends – a longer reach combined with a shorter stem. The geometry features a steeper seat angle and slacker head angle for greater off-road capability but without compromising everyday usability. The sophisticated TFS frames feature: full internal cable routing for a clean, neat set up, tapered headtube offering future upgrade potential, inboard disc brake mounts to protect the brake and maximise stopping power, and dropper post readiness. The new XXS Big Seven size extends the wide range of sizes; Big Nine for taller riders, Big Seven for shorter riders. Riders in the middle can take riding style into account – for speed and efficiency choose a Big Nine, for agility choose a Big Seven.
Specification
| Frame | TFS V – 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kickstand mounts. BSA threaded BB. 135x9 mm axle. Max tyre size 29" x 2.4" |
|---|---|
| Fork | X-Fusion Migo 32 Air; 120 mm travel; lockout; 29x2.4" max. tyre size |
| Gears | 9 |
| Shifters | Rear: Shimano CUES U4000 |
| Rear Derailleur | Shimano CUES U4000; GS |
| Bottom Bracket | Shimano UN101 LL123 |
| Chain | KMC xGlide |
| Chainset | Shimano CUES UT400-1; 32T; aluminium; crank length: S 165 mm, M-XXL 170 mm |
| Cassette | SunRace U9 CS-U980 9AZ; 11–46T; 9-speed |
| Front Brake | Shimano MT200; hydraulic brake with Shimano RT10; 160 mm |
| Rear Brake | Shimano MT200; hydraulic brake with Shimano RT10; 160 mm |
| Grips | Merida Comp TR |
| Handlebar | Merida CC; aluminium; 15 mm rise; S 720 mm wide, M-L 740 mm wide, XL-XXL 760 mm wide |
| Stem | Merida Comp CC; aluminium; 31.8 mm diameter; 7° rise |
| Headset | FSA NO.55R/57SC/57B |
| Pedals | VP VPE-536 |
| Saddle | Merida Comp SL |
| Seatpost | Merida Comp CC; aluminium; 30.9 mm diameter; in-line |
| Wheel Size | 29" |
| Rims | Merida Comp CC; 20 mm inner rim width; aluminium |
| Spokes | Black steel |
| Front Hub | Shimano TX505; 100x9 mm; 32 spoke; Centerlock |
| Rear Hub | Shimano TX505; 135x9 mm; 32 spoke; Centerlock |
| Front Tyre | Kenda Booster; 29x2.4"; second colour option: Booster 29x2.4 tanwall |
| Rear Tyre | Kenda Booster; 29x2.4"; second colour option: Booster 29x2.4 tanwall |
| Colour | Metallic Black (Red) |
| Season | 2026 |
