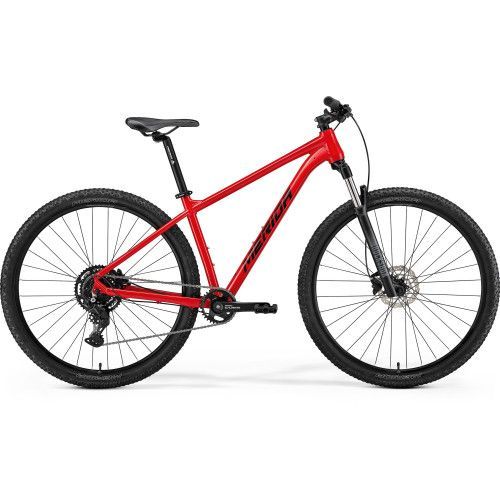

Merida Big Nine 80 - Red
£850.00
Price incl.
VAT (20%)
£141.67
Size
In stock: 1 available
Product Details
Brand:
Merida
MERIDA BIG NINE 80 RED
Specification
Frame
- TFS IV - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29" x 2.25"
Fork
- RockShox Judy TK; Coil; 100mm travel Lockout; 46mm fork offset; Max tyre size 29" x 2.25"
Gears
- 9
Shifters
- Shimano Cues U4000-9
Rear Derailleur
- Shimano CUES U4000-9; GS
Bottom Bracket
- Shimano BB-UN101 73-123
Chain
- KMC xGlide
Chainset
- Shimano CUES U4000; 32 tooth chainset; Aluminium; Crank length - 170mm (S), 175mm (M and up)
Cassette
- Shimano CS-LG300-9; 11-46 teeth; 9 speed
Brake Lever
- Shimano MT200
Front Brake
- Shimano BR-MT200; hydraulic disc brake caliper with Shimano RT10; 160mm rotor
Rear Brake
- Shimano BR-MT200; hydraulic disc brake caliper with Shimano RT10; 160mm rotor
Grip
- Merida EC
Handlebar
- Merida CC; aluminium; 690mm wide; 15mm rise
Stem
- Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Length - 70mm (S), 80mm (M), 90mm (L), 100mm (XL), 110mm (XXL)
Head Set
- Merida M2345
Pedal
- VP VPE-891
Saddle
- Merida Sport comfort
Seat Post
- Merida CC; 30.9mm diameter; 15 mm layback; Aluminium
Wheel Size
- 29"
Rims
- Merida CC; 17mm inner rim width; aluminium
Spokes
- Black steel
Front Hub
- Shimano HB-TX505; 100 x 9mm; 32 spoke; Centerlock
Rear Hub
- Shimano FH-TX505; 135 x 9mm; 32 spoke; Centerlock
Front Tyre
- Merida K1080; 29" x 2.2"; wire bead
Rear Tyre
- Merida K1080; 29" x 2.2"; wire bead
Colour
- Dark Red/Black
Season
- 2025
