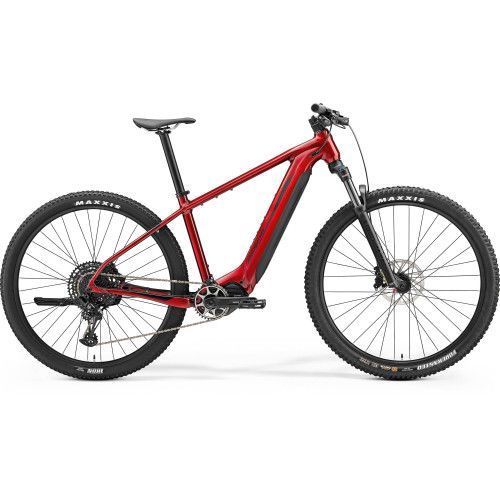

Merida eBig Nine 675 - Red/Black
MERIDA EBIG NINE 675 RED/BLACK
The geometry of the eBig Nine follows a simple principle; as sporty as possible, as comfortable as necessary. You ride to work in the morning but fancy a little off road detour on the way home? No problem – that's what these bikes are made for! Combining the best elements of mountain and trekking bikes, this rugged machine can be fitted with mudguards and racks making it ideal for both commuting and year round leisure riding. Many technical features and much of the thinking that went into the award winning eOne-Sixty have been incorporated to deliver a stylish and well thought through hardtail. The strong, stiff aluminium frame is the result of extensive hydroforming, precision laser cutting and CNC machining. The battery is housed low down in the downtube to keep the centre of gravity low. The battery can be charged in the bike via a satellite charging port.
Specification
- Lite III - Hydroformed 6066 aluminium, integrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29"x2.25" with mudguards, 29"x2.35" without
- Shimano Steps EP6; 85Nm
- Simplo Trend Power Internal Battery Gen 2; 750Wh
- 750Wh
- Shimano SC-EN600
- Trend Power Simplo EU Charger; 4A
- Shimano SW-EN600-L
- Suntour XCR34 LOR DS; Air; Boost; 100mm travel; Tapered; 51mm fork offset; Max. tyre size 29" x 2.4"
- 12
- SRAM NX Eagle 12 speed
- Sram NX Eagle
- Part of Shimano Steps motor
- Sram SX Eagle
- SAMOX EMA04; 34 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with Mr. Control CH-E8 mini chainguide
- SRAM PG-1210 Eagle; 10-50 teeth; 12 speed
- SRAM DB8
- SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 180mm rotor
- SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 180mm rotor
- Merida Expert TK
- Merida Expert CC; aluminium; 720mm wide; 10mm rise
- Merida Expert CT; aluminium; 31.8mm diameter; adjustable; length: 90mm all sizes
- Merida-8155 (for steerer 1-1/8"~1.5")
- VP Components - VPE-537
- Merida Expert TK; V-mount
- Merida Expert CC; aluminium; 34.9mm diameter; in-line
- 29"
- Merida Comp CC II; 25mm inner rim width; aluminium
- Black stainless
- Novatec SL-ELITE D041SB-B15; 110 x 15mm; 32 spokes; 6 bolt
- Novatec SL-Team D462SB-S3S-B12-11S; 148 x 12mm; 32 spokes; 6 bolt with Merida Expert TR axle including removable 6/4mm allen key
- Kenda Booster; 29" x 2.2"; wire bead
- Kenda Booster; 29" x 2.2"; wire bead
- Red/Black
- 2024
- Lezyne Power STVZO E115, reverse Merida Custom Mount
- Spanninga Commuter Glow XE integrated rear light
- Complete with: mudguards, kickstand, frame lock and Merida carrier with spring clip and integrated rear light
