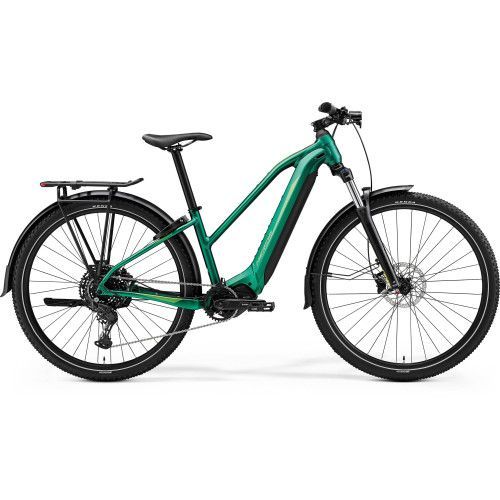

Merida eBig Tour 475 EQ - Green
MERIDA EBIG TOUR 475 EQ GREEN
The cycling equivalent of an SUV; stylish and practical. 29” wheels make for effortless cycling. The fast and grippy 2.2” Kenda Booster tyres fit neatly inside the mudguards for year round practicality. The bent top tube provides a really low standover height for easy mounting and dismounting and a more confident ride. Some of the technical features and thinking from the award winning Merida eOne-Sixty make an appearance, including the satellite charging socket, a double compound battery compartment cover and a neat bottle boss system incorporating tidy cable routing. The list of well thought through details include tyres with reflective strips, a rack with an integrated rear light, a Lezyne front light, an integrated lock and a kick stand.
Specification
- Lite IV - Hydroformed 6066 aluminium, integrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29"x2.25" with mudguards, 29"x2.35" without
- Shimano Steps EP6; 85Nm
- Simplo Trend Power Internal Battery Gen 2; 750Wh
- 750Wh
- Shimano SC-EN500
- Trend Power Simplo EU Charger; 4A
- Suntour XCM34-Boost LOR DS; 100mm travel; Tapered; 51mm fork offset; Max. tyre size 29" x 2.4"
- 10
- Shimano CUES U6000
- Shimano Cues U6000; GS
- Part of Shimano Steps motor
- Shimano LG500
- Shimano CRE70-B; 34 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with Mr. Control CH-E8 mini chainguide
- Shimano LG300; 11-48 teeth; 10 speed
- Shimano MT200
- Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT30 180mm rotor
- Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RTEM300 180mm rotor
- Merida Expert TK
- Merida Expert CC; aluminium; 720mm wide; 10mm rise
- Merida Expert CT; aluminium; 31.8mm diameter; adjustable; length: 90mm all sizes
- Merida-8155 (for steerer 1-1/8"~1.5")
- VP Components - VPE-537
- Merida Expert TK; V-mount
- Merida Expert CC; aluminium; 34.9mm diameter; in-line
- 29"
- Merida Comp CC II; 25mm inner rim width; aluminium
- Black stainless
- Shimano TC500-B; 110 x 15mm; 32 spokes; Centerlock
- Shimano TC500-HM-B; 148 x 12mm; 36 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key
- Kenda Booster; 29" x 2.2"; wire bead
- Kenda Booster; 29" x 2.2"; wire bead
- Green
- 2024
- Lezyne Hecto STVZO E65 front light
- Spanninga Commuter Glow XE integrated rear light
- Complete with: mudguards, kickstand, frame lock and Merida carrier with spring clip and integrated rear light
