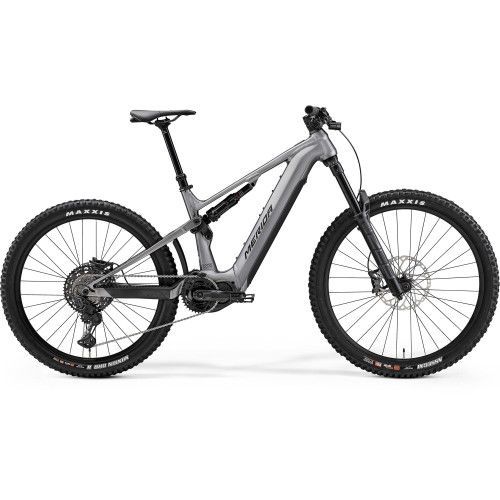

Merida eOne-Sixty 875 - Grey/Black
MERIDA EONE-SIXTY 875 GREY/BLACK
With the new eOne-Sixty, the next descent is always about to start. Our aluminium frame offersgreat value and maximum battery range, thanks to a powerful Shimano EP801 drive unit paired with a removable 750 Wh battery. A 360 Wh range extender is available separately. The only reason to stop will be because you have to. Our capable, uodated geometry has been influenced by the success of the original eOne-Sixty and the award winning One-Sixty; its handling will help conquer the toughest of climbs and the steepest descents. Our proven FAST kinematic suspension will take care of anything the trail throws at it. Our low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. Our flip chip design enables you to run with mixed size 29" front and 27.5" rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails. Thanks to our 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whichever suits you.
Specification
- Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6"
- Shimano Steps EP801; 85Nm
- Simplo Trend Power Internal Battery Gen 2; 750Wh
- 750Wh
- Shimano SC-EM800
- Trend Power Simplo EU Charger; 4A
- Shimano satellite system on/off; EWSW310
- Shimano SW-EM800-L
- RockShox Super Deluxe Select
- RockShox ZEB Select; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.8"
- 11
- Shimano XT M8130 and Shimano SL -MT500-IL dropper lever
- Shimano XT RDM8130 LinkGlide 11 speed
- Part of Shimano Steps motor
- Shimano LG500
- FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-E8150 165mm length crank all sizes with MRP 1x chainguide
- Shimano LG700; 10-50 teeth; 11 Speed
- Shimano XT
- Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor
- Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT-EM600 203mm rotor
- Merida Expert EC
- Merida Expert eTR; 780mm wide; 20mm rise
- Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
- Acros ICR Merida External neck w/ Blocklock
- VP Components - VPE-527
- Proxim W400 STN with V-mount adapter; including Merida minitool
- Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel
- 29" / 27.5"
- Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
- Black stainless
- Shimano XT; 110 x 15mm; 32 spokes; Centerlock
- Shimano XT; 148 x 12mm, 32 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key
- Maxxis Assegai; 29" x 2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip
- Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR
- Grey/Black
- 2024
- Lezyne Power STVZO E115, reverse Merida Custom Mount
- Lezyne LED FEMTO USB REAR STVZO
- Trend Power On-bike charging cable
